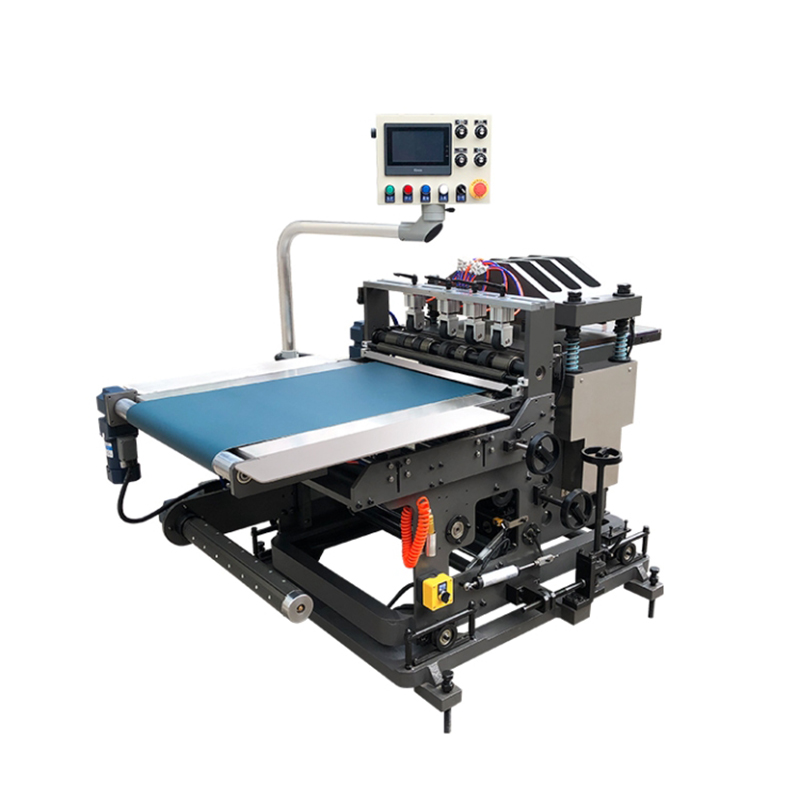

NCA6001C DIE CUTTING MACHINE FOR FLEXIBLE BAG MAKING MACHINE

l.Die cutting machine is one auxiliary device for flexible bag making machine, to produce three-side irregular bag and stand-up irregular pouch.2.In order to avoid from re-punching by manual and reduce the wastes of the manpower, resource and time.

Product Detail

Usage

1.Die cutting machine is one auxiliary device for flexible bag making machine, to produce three-side irregular bag and stand-up irregular pouch.

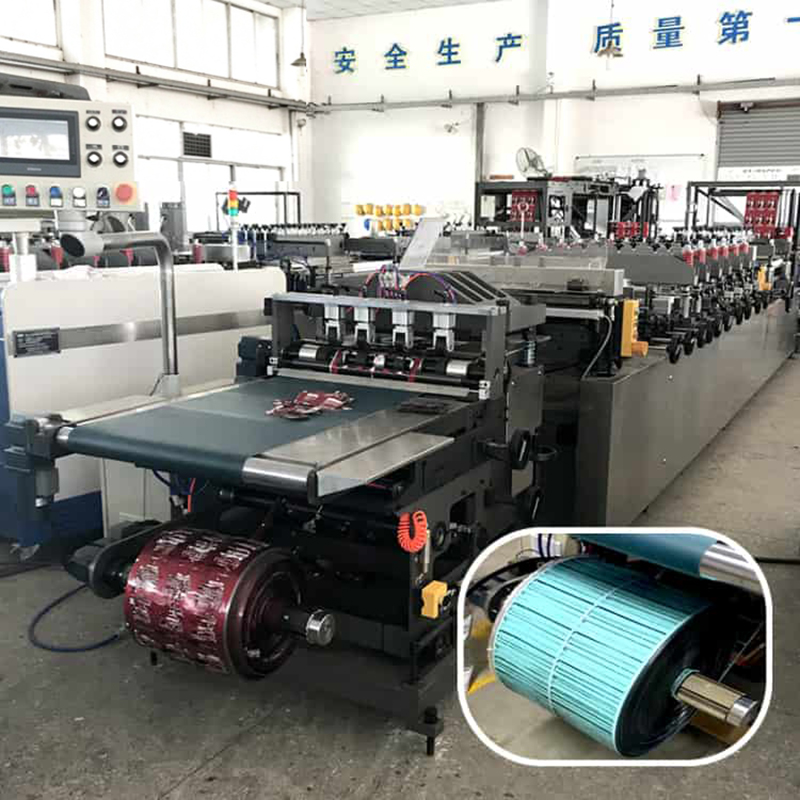

2.The device can be connected with the bag making machine, the bags can be punched in line, after punching, the wasted material can be wound automatically.

3.The final products can be packed and no need to post processing. In order to avoid from re-punching by manual and reduce the wastes of the manpower, resource and time.

Advantage

1.Full frame is casting, high precision,.

2.Widened table, can be lifted.

3.Speed:Max150part/min

4.Pneumatic locks cutter, fast to change.

Main Technical Specification

Die cutting machine is one auxiliary device for flexible bag making machine, to produce three-side irregular bag and stand-up irregular pouch. The device can be connected with the bag making machine, the bags can be punched in line, after punching, the wasted material can be wound automatically. The final products can be packed and no need to post processing. In order to avoid from re-punching by manual and reduce the wastes of the manpower, resource and time.

1	Film material	PET/PE.PET/CPP.BOPP/PE.PET/AL/NY/PE.PET/NY/PE etc laminated material
2	Material width	600mm
3	Capacity:	60~150pcs/min (according to the step length of bag）
4	Max punching square	MAX 580×300mm
5	Die cutter installing size	600×320mm

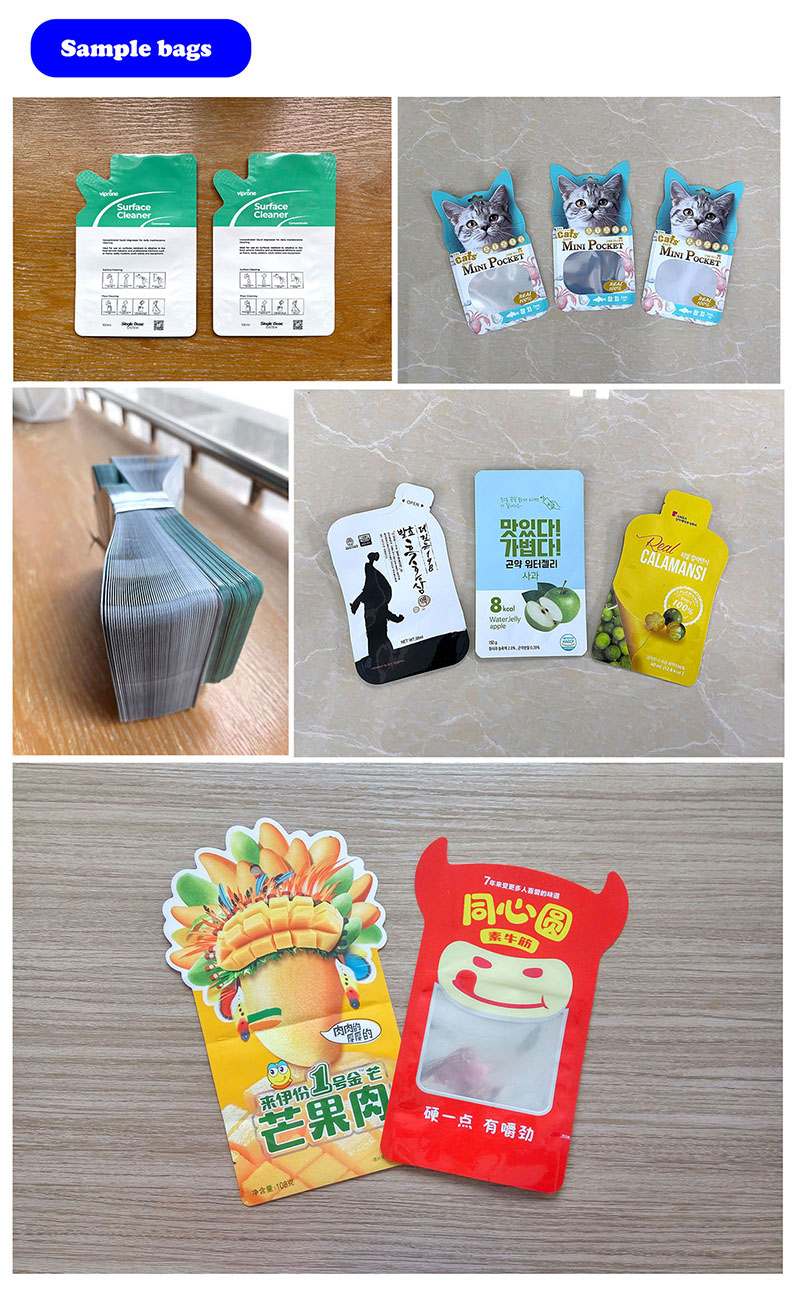

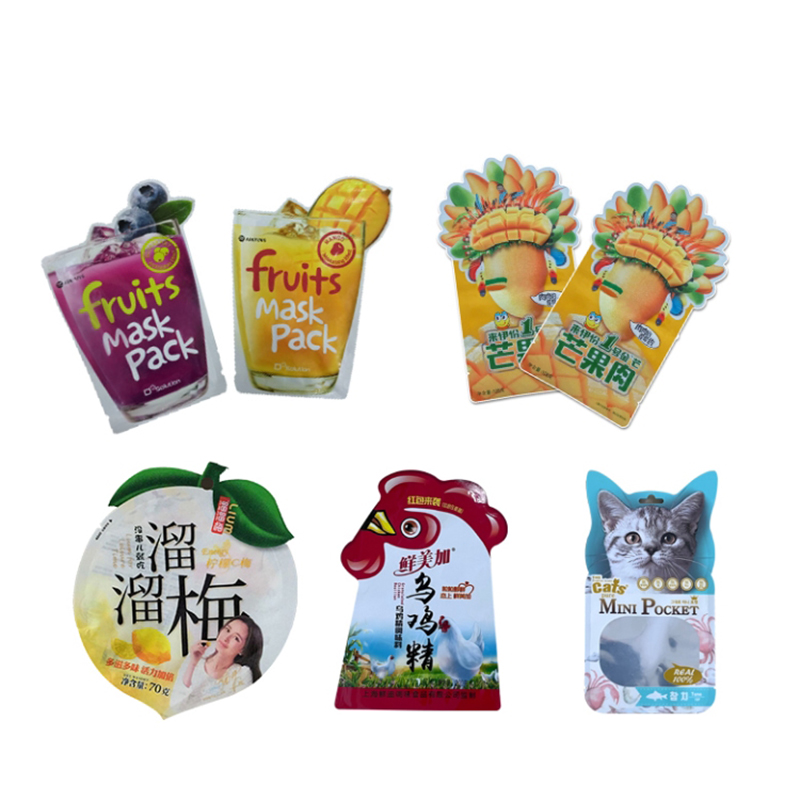

6	Bag type	Three-side shaped bag, stand up shaped pouch, zipper bag etc
7	Total power	3KW
8	Power voltage	AC380V,50HZ, 3P
9	Machine dimension(MAX):	L×W×H: 1500×1400×1200mm
10	Machine weight:	about 900KG
11	Wasted edge	Two side edges (film flowing direction) leave at least 5mm, wasted edge between two bags leave at least 4mm.
