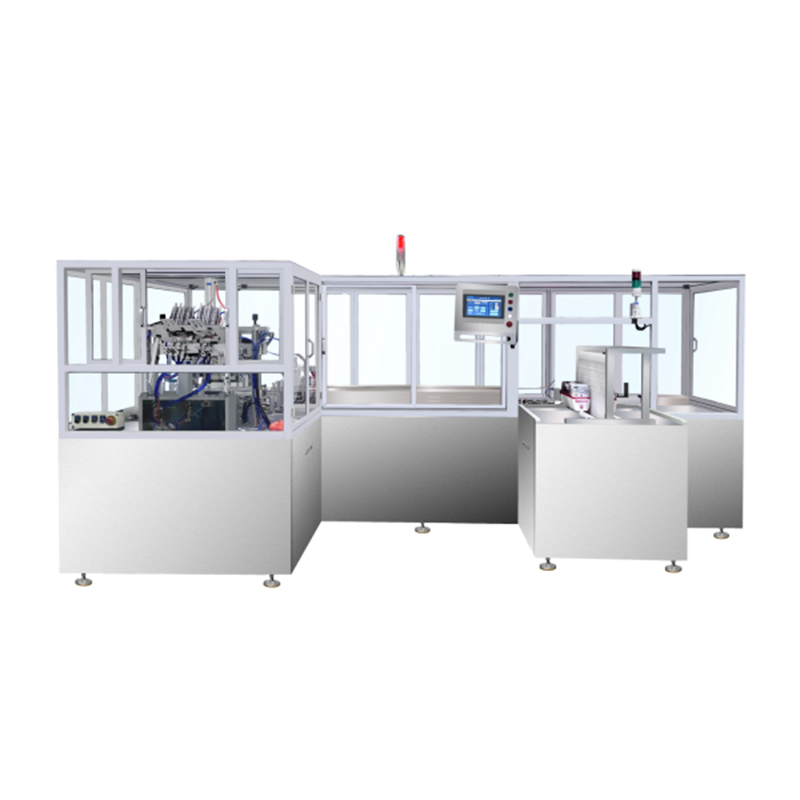

NCA1604D-90 FLEXIBLE POUCH AND SPOUT AUTOMATIC SEALING MACHI

1. The device is used to join a flexible pouch and a plastic spout.

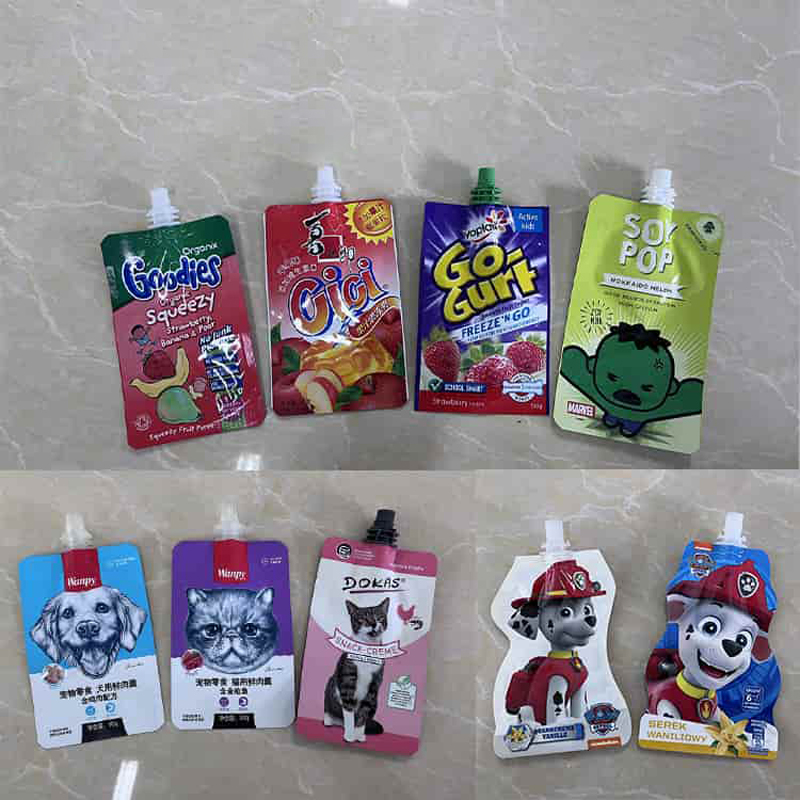

2. It can be used to package beverages, jellies, soy sauce, flavorings, and cosmetics (such as face masks and milk).

Product Detail

1. The device is used to join a flexible pouch and a plastic spout.

2. It can be used to package beverages, jellies, soy sauce, flavorings, and cosmetics (such as face masks and milk).

1、Mechanical sealing (3 servo); Small noise; Low gas consumption

2、Various function:center/corner spout pouch; speed 80-90 pcs/min

3、Upgraded safety protective cover，One-man operation

4、Upgraded safety protective cover

5、Pouch holder design positional precisely

6、New pouch put way,easier to adjust more stable

Pouch size (L×W)	Center spout pouch (100-190)× (70-120)mm (Different pouch size needs to adjust or change the pouch tank adjusting board.)
Pouch size (L×W)	Corner spout pouch （100-160）×（70-110）mm (Different pouch size needs to change the pouch tank, accompanying frame etc.) Max angle 45 degree Size A≦ 70mm Note: the machine is with corner spout function, if need to do corner spout bag, only add the pouch tank and accompanying frame extra.
Spout type	Long or short spout with the bayonet, supplied by the customer.
Production efficiency	Center spout pouch: 85-90pcs/min Corner spout pouch: 80-85pcs/min Note: The production efficiency varies because of the material and the difference of the pouch size.
Power	AC380V，50HZ，9.5KW，3P
Compressed air	0.6-0.8Mpa, 360NL/min
Dimension (L×W×H)	4250×1900×1730mm
Cooling water	6L/min
Weight	2600Kg
