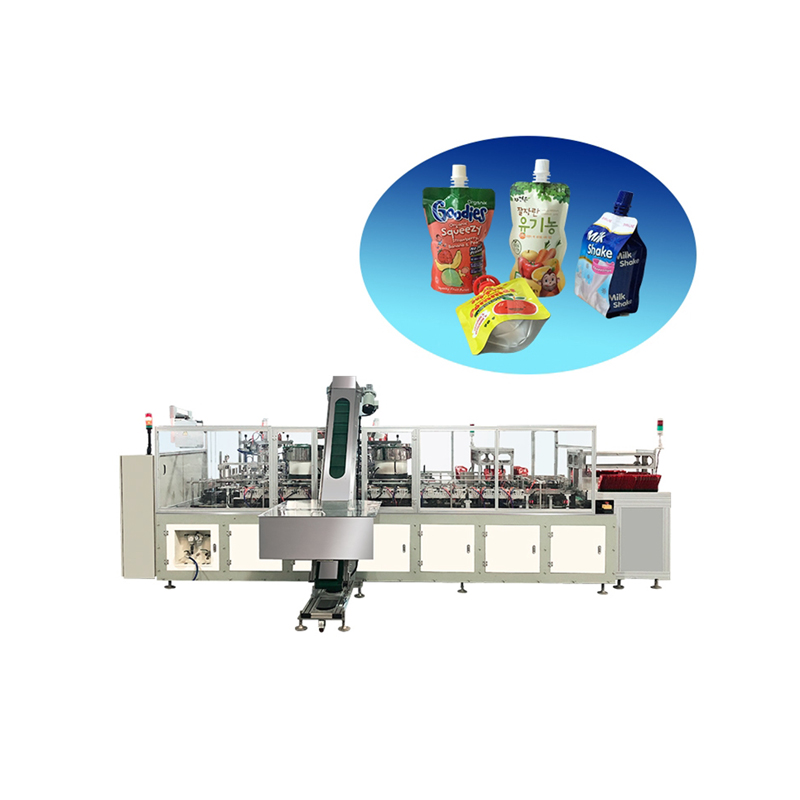

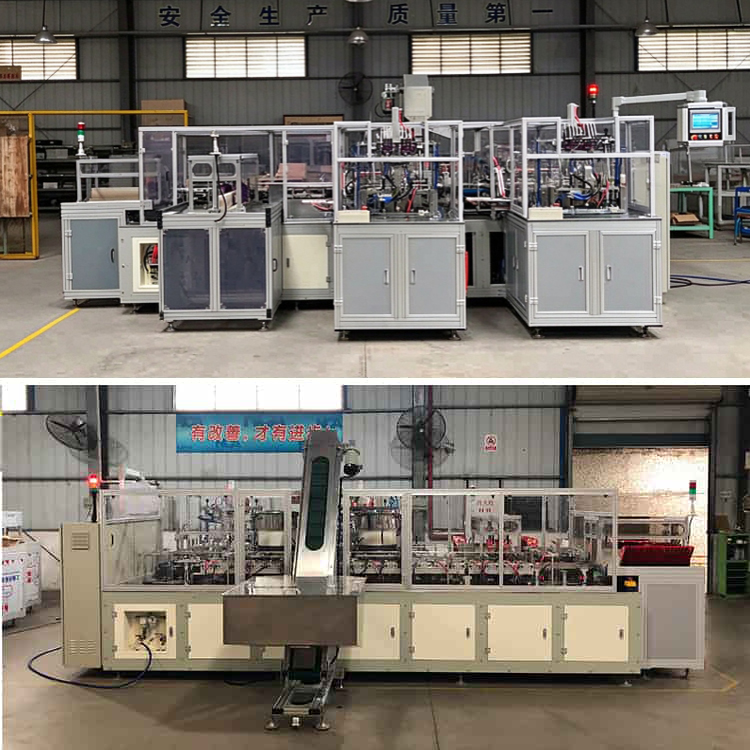

NCA1609A FLEXIBLE POUCH AND SPOUT AUTOMATIC SEALING MACHINE

l.The machine is used to weld a plastic spout to a flexible pouch.

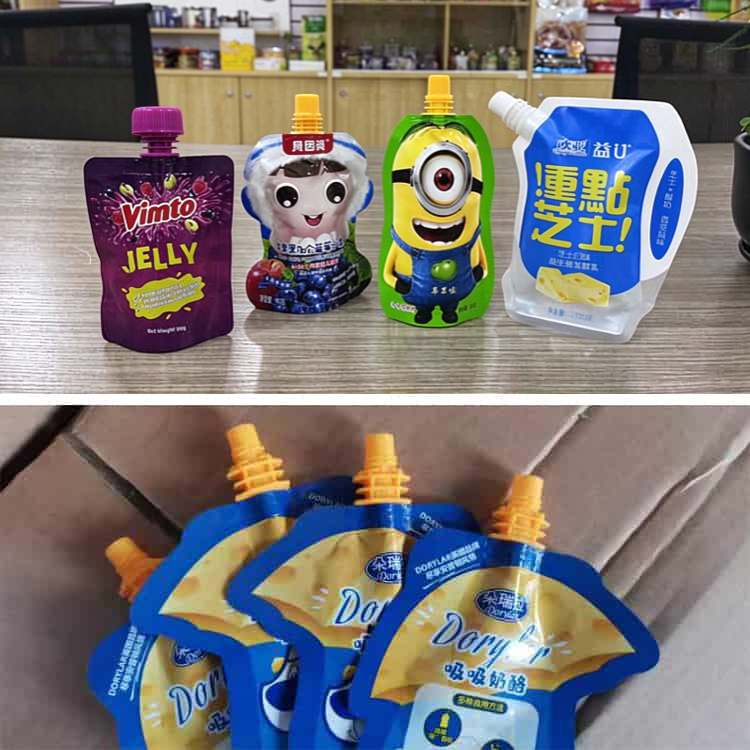

2.It is suitable for packaging drinks, jelly, soy sauce, flavorings and cosmetics (milk, face mask) etc..

Product Detail

l.The machine is used to weld a plastic spout to a flexible pouch.

2.It is suitable for packaging drinks, jelly, soy sauce, flavorings and cosmetics (milk, face mask) etc..

1、Mechanical sealing ;① Small noise; ②Better sealing quality；③Saving compression air；④Extend using lifetime

2、Various function:center/corner spout pouch; speed 140-150pcs/min

3、Straight-type layout ; ①Less operators, save on labors;②It covers a small area；③Easy to operate and adjust.

Pouch size (L×W)	Center spout pouch (100-190)× (70-120)mm (Different pouch size needs to adjust or change the pouch tank adjusting board.)
Pouch size (L×W)	Corner spout pouch （100-160）×（70-110）mm (Different pouch size needs to change the pouch tank, accompanying frame etc.) Max angle 45 degree Size A≦ 70mm Note: the machine is with corner spout function, if need to do corner spout bag, only add the pouch tank and accompanying frame extra.
Spout type	Long or short spout with the bayonet, supplied by the customer.
Production efficiency	120-140pcs/min Note: The production efficiency varies because of the material and the difference of the pouch size.
Power	AC380V，50HZ，18KW，3P
Compressed air	0.5-0.7Mpa, 450NL/min
Dimension (L×W×H)	5800×3750×2270mm （including spout lifting device）
Cooling water	6L/min
Weight	3500Kg
