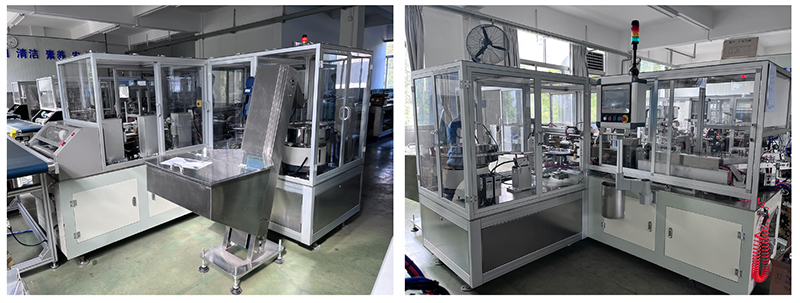

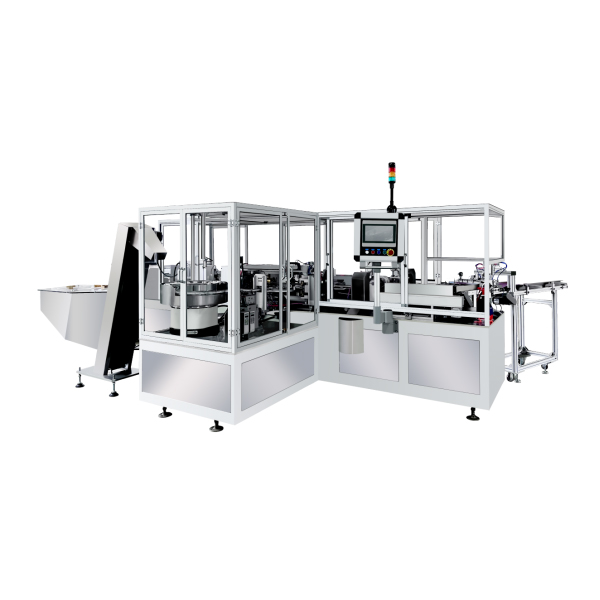

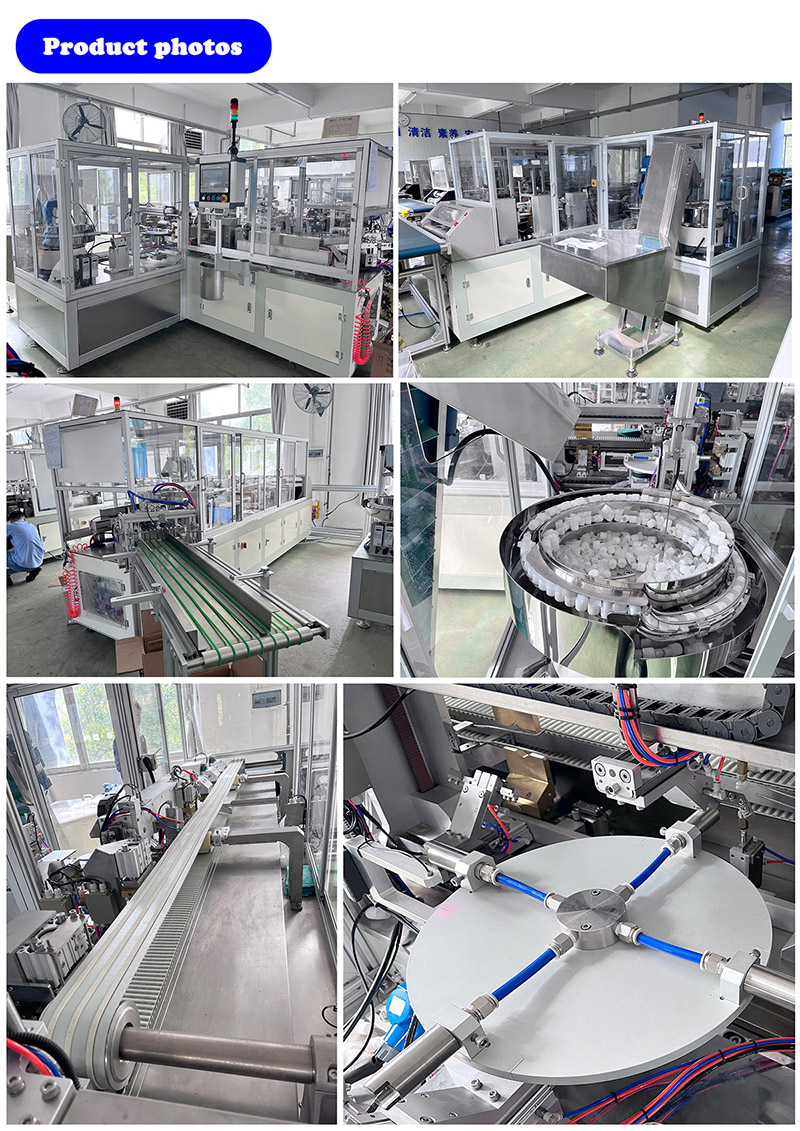

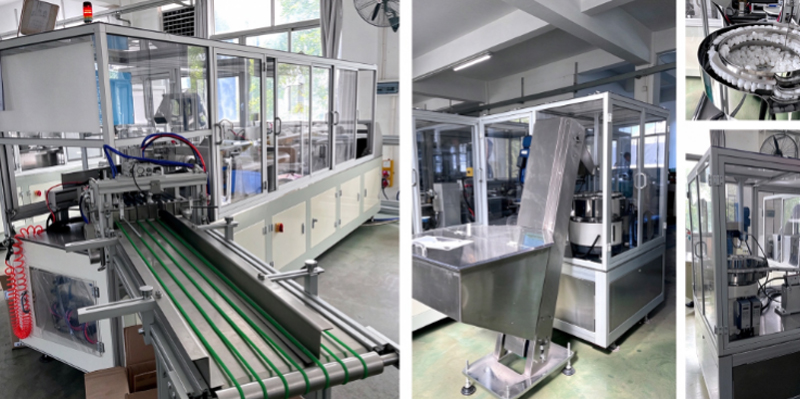

NCA1623B AUTOMATIC POUCH SPOUT INSERTER

1.The machine is used to cut an angle and weld a plastic spout on the cut automatically.

2.It is suitable for the large pouches of drinks, chrysanthemum MSG, grape sugar powder, washing liquid, hand washing liquid and cosmetics etc.

Product Detail

1.The machine is used to cut an angle and weld a plastic spout on the cut automatically.

2.It is suitable for the large pouches of drinks, chrysanthemum MSG, grape sugar powder, washing liquid, hand washing liquid and cosmetics etc.

3. Depending on the characteristics of the material, this equipment can be tailored to prevent material deformation during extrusion.

1、Capacity：40-45pcs/min.

2、Spout type:Short spout, supplied by the customer.（φ5mm-φ25mm）.

2、Mechanical sealing (4-5 servo) , and lower maintenance costs.

3、Automatic Angle cutting function, center/corner spout pouch.

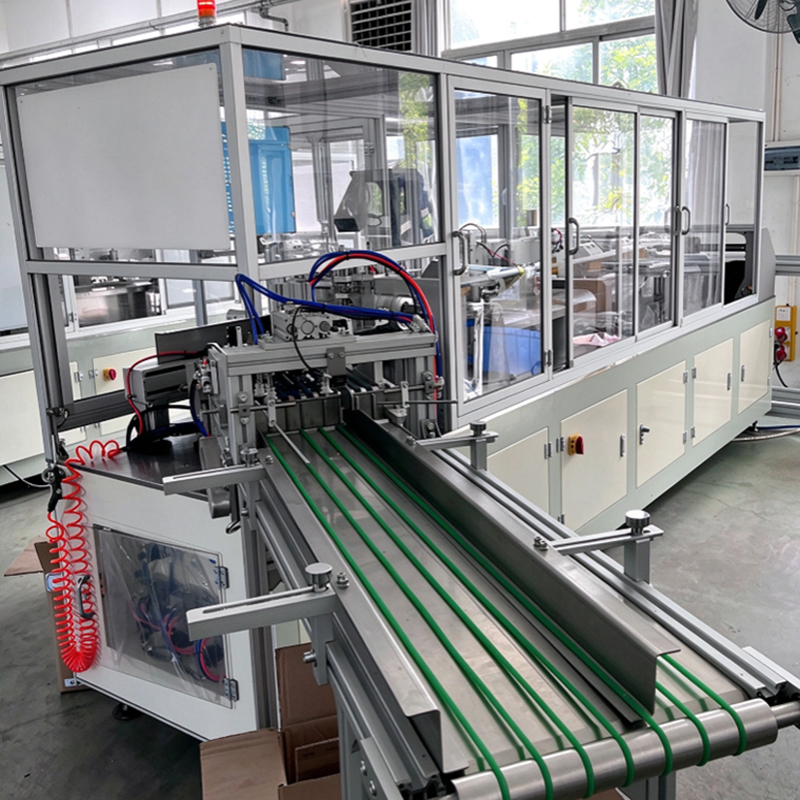

4、With pouch feeding conveyor and finished pouch unloading conveyor.

Pouch size (L×W)	Corner spout: （120-320）×（100-250）mmMAX: 300×250mm 320×200mm 260×260mm
Cutting angle	17º---45º±2º
Spout type	Short spout, supplied by the customer.（φ5mm-φ25mm）
Production efficiency	40-45 pieces/min（the smaller size pouch）35-40 pieces/min（the bigger size pouch）Note: The production efficiency varies because of the material and the difference of the pouch size.
Power	AC380V，50HZ，11KW，3P
Compressed air	0.7Mpa, 250NL/min
Dimension (L×W×H)	5700×3000×1900mm
Cooling water	6L/min
Weight	2000Kg
