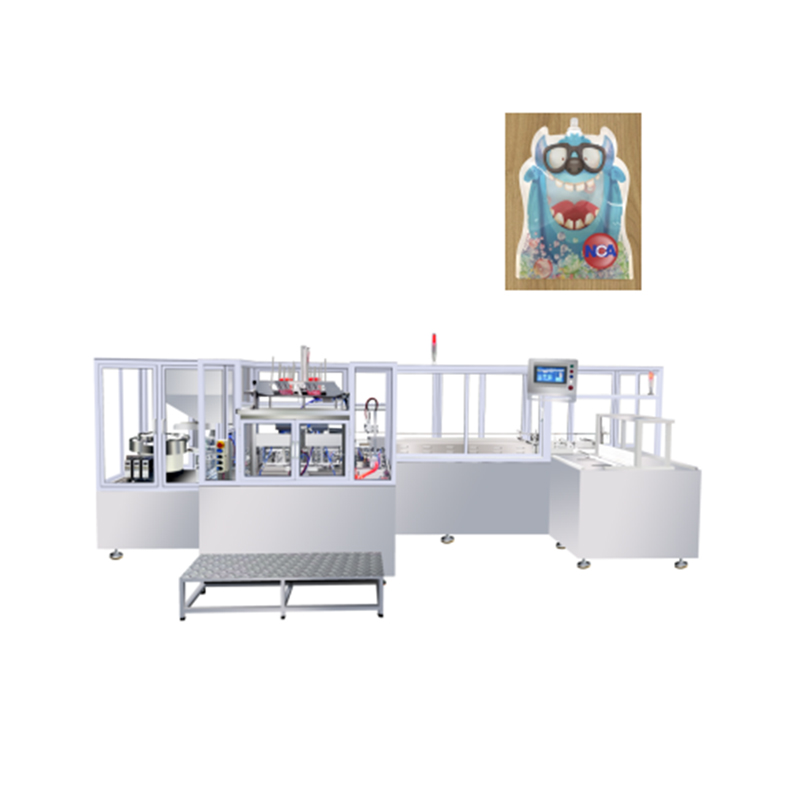

NCA1604C FLEXIBLE POUCH AND SPOUT AUTOMATIC SEALING MACHINE

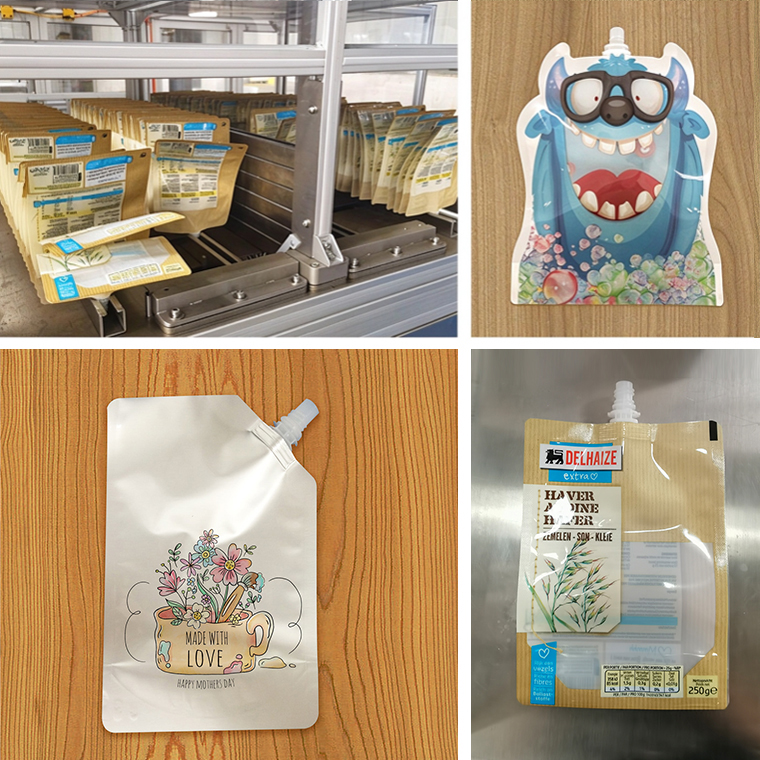

l.The machine is used to weld a plastic spout to a flexible pouch.

2.It is suitable for a slightly larger packaging drinks, jelly, soy sauce, flavorings and cosmetics (milk, face mask) etc..

Product Detail

l.The machine is used to weld a plastic spout to a flexible pouch.

2.It is suitable for a slightly larger packaging drinks, jelly, soy sauce, flavorings and cosmetics (milk, face mask) etc..

1. 3 servo mechanical sealing, little noise, and low gas consumption

2. Different functions: center/corner spout pouch; 60-70 pieces per minute

3. Center spout pouch dimensions: 230*180mm; 230*150mm corner spout pouch.

4. Improvements to the safety protective cover

5. Pouch holder design that is exactly positioned

6. Improved pouch placement, more stable and easy to adjust

Pouch size (L×W)	Center spout pouch (100-230)× (70-180)mm (Different pouch size needs to adjust or change the pouch tank adjusting board.)
Pouch size (L×W)	Corner spout pouch （100-230）×（70-150）mm(Different pouch size needs to change the pouch tank, accompanying frame etc.) Max angle 45 degree; Size A≦ 70mm Note: If you need to make a corner spout bag, just add the pouch tank and accompanying frame in addition to the machine's built-in corner spout function.
Spout type	Long or short spout with the bayonet, supplied by the customer.
Production efficiency	Center spout pouch: 60-70pcs/minCorner spout pouch: 60pcs/minNote: Due to the material and various bag sizes, the production efficiency varies.
Power	AC380V，50HZ，9.5KW，3P
Compressed air	0.6-0.8Mpa, 360NL/min
Dimension (L×W×H)	5430×2400×1960mm
Cooling water	6L/min
Weight	2600Kg
