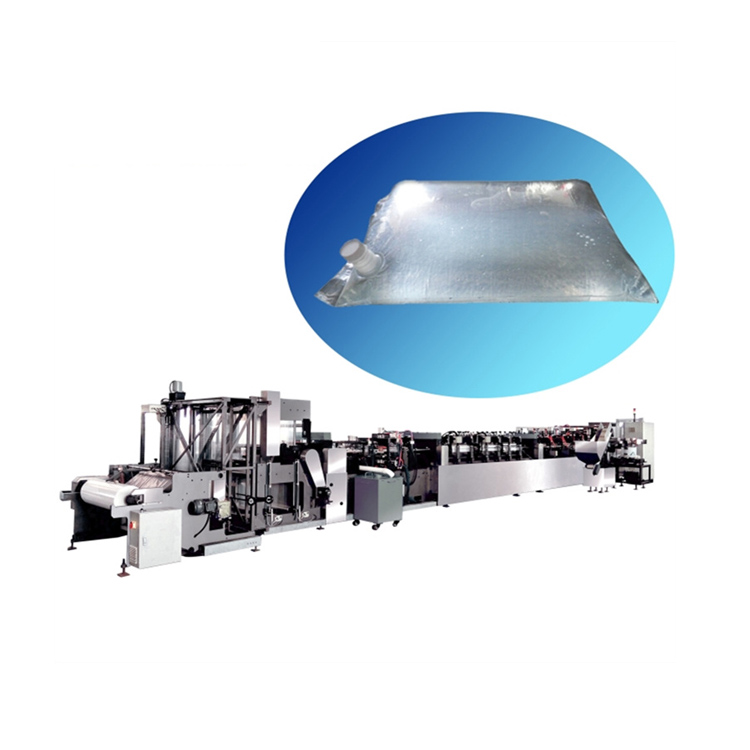

NCA600BIB AUTOMATIC BAG-IN-BOX PRODUCTION LINE

l.This machine is used to make packaging bags of various laminated films with plastic spouts, the bag making and the spout sealing are done at the same time.

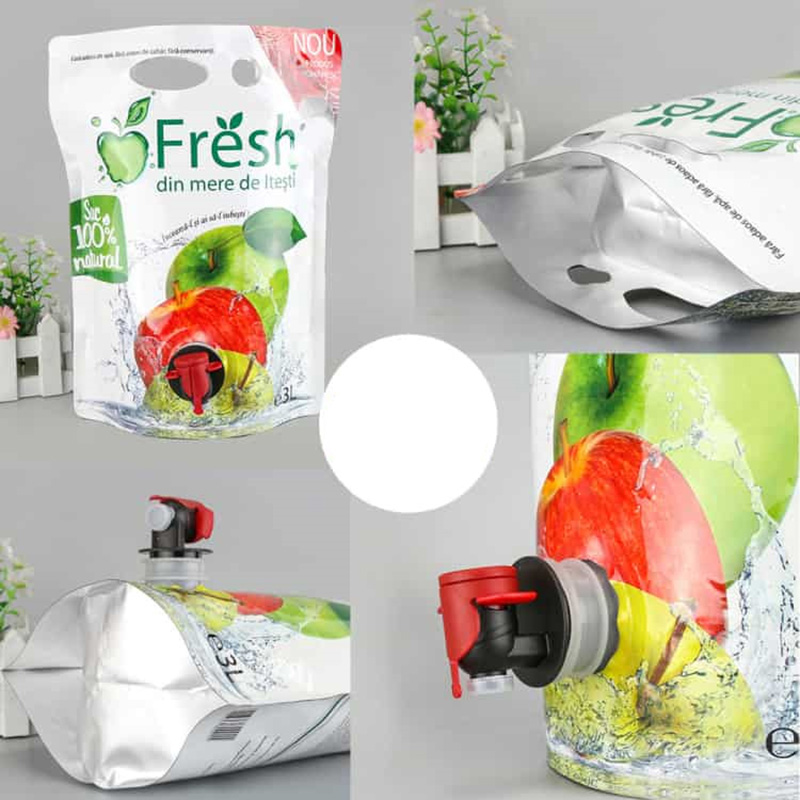

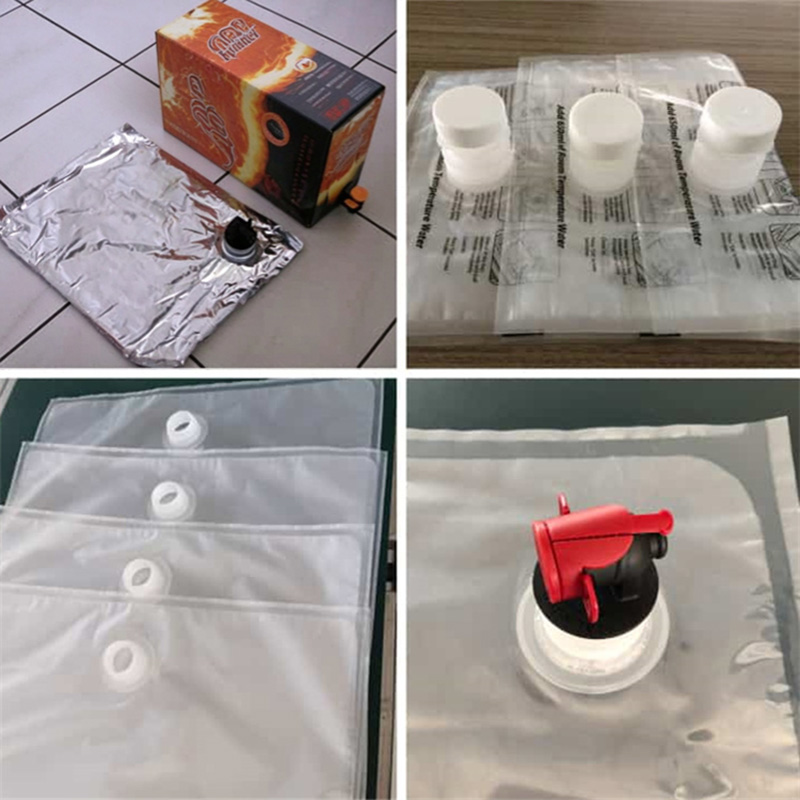

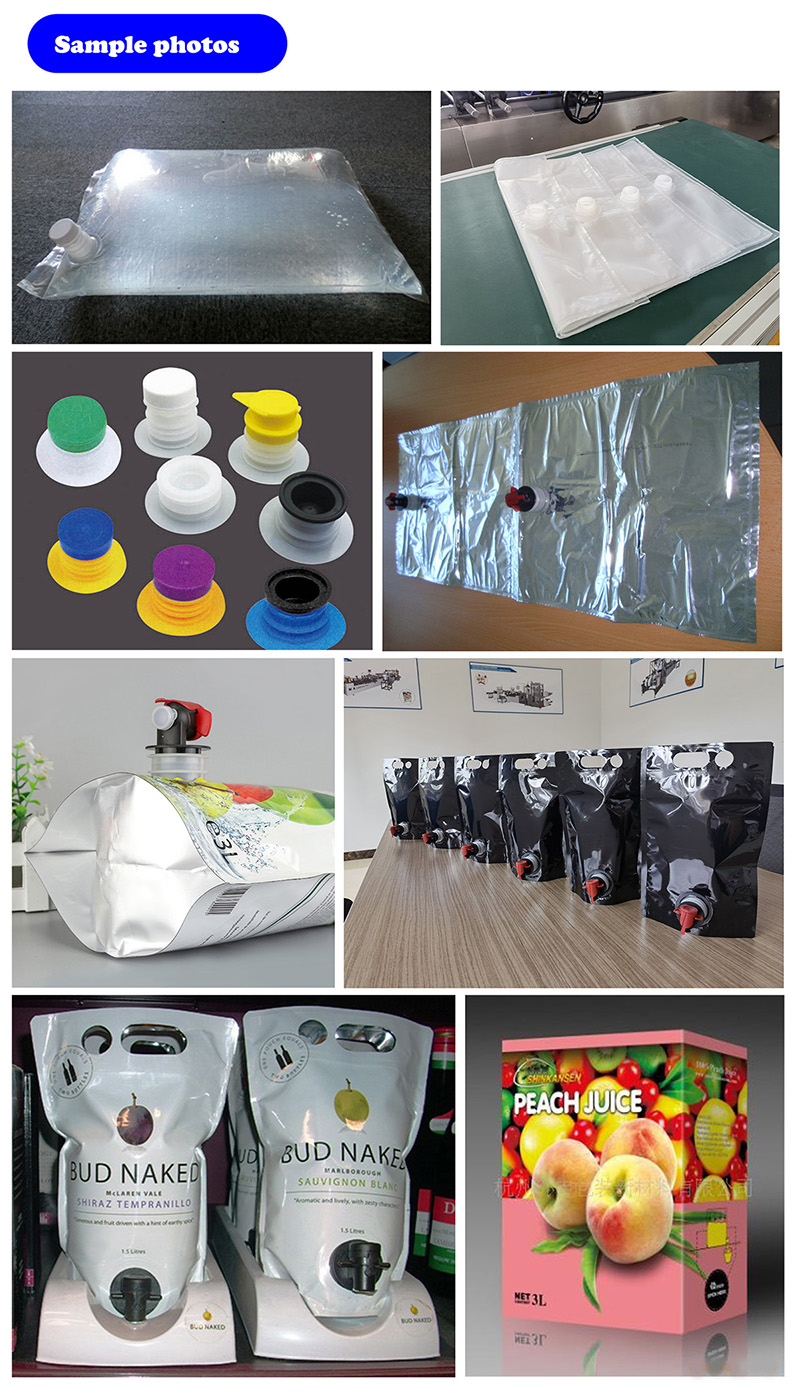

2.The products are widely used for high-capacity packaging of food, such as red wine, edible oil, fruit juice, chocolate plasma, drinking water, soy sauce etc; also used for hand washing liquid, washing liquid, disinfectant liquid, printing ink and other liquid daily chemicals etc.

Product Detail

Usage

l.This machine is used to make packaging bags of various laminated films with plastic spouts, the bag making and the spout sealing are done at the same time.

Advantage

1.Capacity: :25-30pcs/min

2.Fully automatic, save labor

3.The bag-making welding nozzle on line

Main Technical Specification

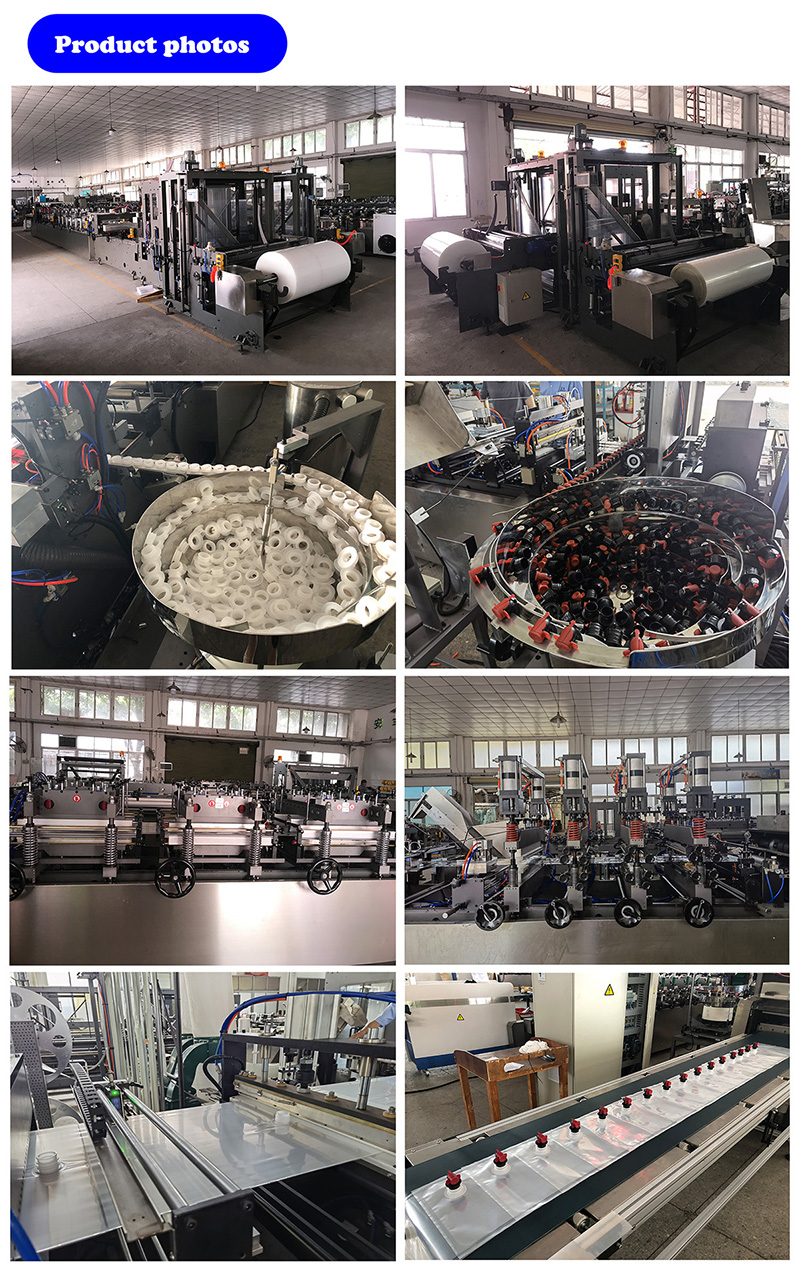

Double film reels unwinding, film feeding, rectifying, film composite, hole punching, spout feed, spout sealing, bag making, cap pressing cutting and etc. The working process is reasonable, finish it automatically.

1	Film material	Plastic laminated film
2	Capacity:	25-30pcs/min (5-22 liter)
3	Material thickness	0.06～0.18mm
4	Spout type	according to one kind of spout supplied
5	(Speed for spout pouch, specific speed according to pouch size and material)
6	Pouch size:(L×W)	Max680×530mm Min200×200mm
7	Total power	About 60KW
8	Power voltage	AC380V,50HZ, 3P
9	Air pressure:	0.5-0.7Mpa
10	Cooling water:	10L/min
11	Machine working table height:	1050mm
11	Machine working table height:	handle operation height 850mm
12	Machine dimension(MAX):	L×W×H: 14300×6200×1950mm
13	Machine weight:	about 8500KG
14	Machine color:	Gray (wallboard)/ stainless steel (guard board)
