NCA600SZQ THREE-SIDE SEAL, STAND-UP, CHEERPACK POUCH MAKING

1.This machine is used to make packaging bags of various laminated films.

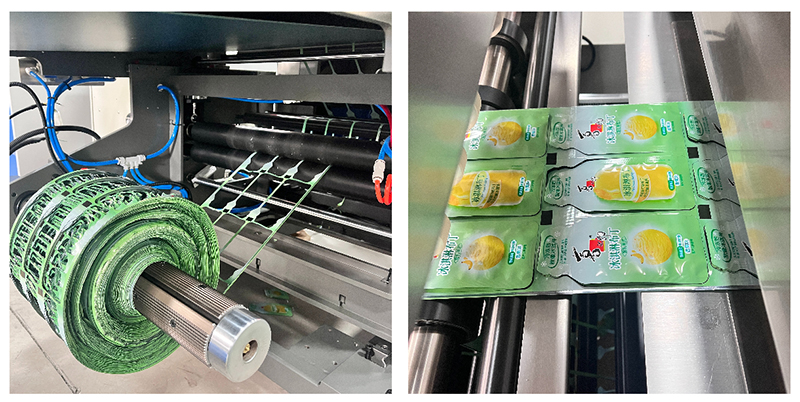

2.Through the optional auxiliary device, it can be widely suitable for making three-side sealing bag, stand-up pouch and cheerpack pouch.

Product Detail

1.This machine is used to make packaging bags of various laminated films.

2.Through the optional auxiliary device, it can be widely suitable for making three-side sealing bag, stand-up pouch and cheerpack pouch.

Model	NCA600SZQ
Roll size	Max width 1220mm Max diameterφ800mm
Auxiliary material	Cheerpack pouch: Max width 150mm; Max diameterφ500mm Stand-up pouch: Max width 150mm; Max diameterφ600mm
Pouch making specification	Cheerpack pouch: (Width ): Max 600mm (Length ): 30-320mm， (Side gusset): 20-70 mm
	Stand-up pouch: (Width): 80-320mm，(Width ): 80-600mm ( Bottom gusset): 20-70 mm
	*（If over 320mm, need to use multiple conveying）
Bag-making speed & Suitable bag type	(3-side seal bag): 150parts/min ; （Double bags feed）：300bags/min (Stand-up pouch): 90parts /min ; （Double bags feed）：180bags/min (Cheerpack pouch ): 80 parts /min ; （Three bags feed）：240bags/min
Power	AC 380V, 50HZ, 3P, 69KW
Compressed air	0.5-0.7Mpa
Cooling water	10L/min
(L×W×H)Dimension	10500×2500×2000(mm)
Weight	6000KG
