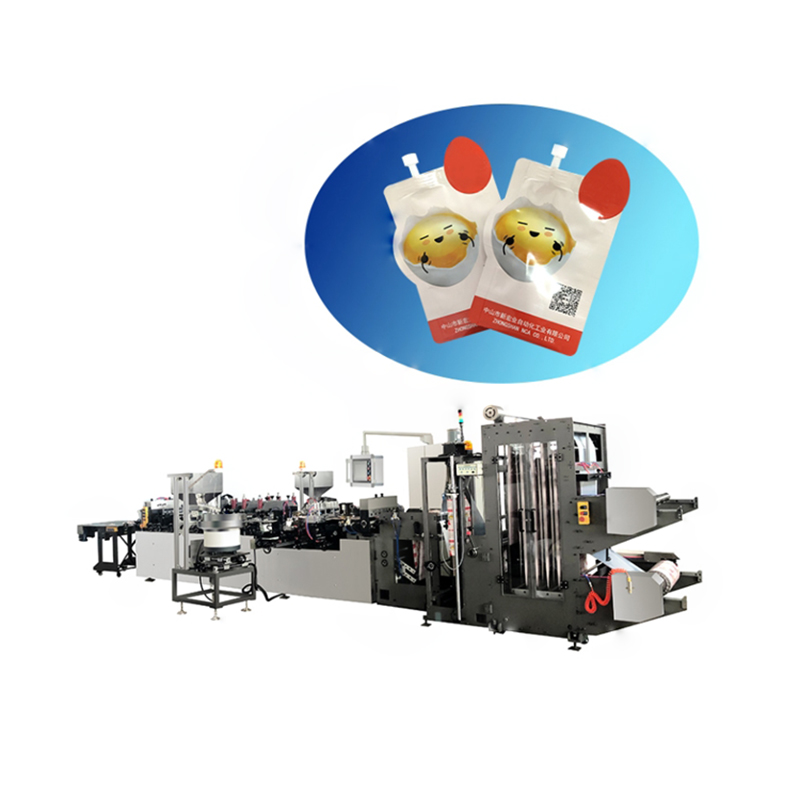

NCA300SJA AUTOMATIC BAG MAKING AND SPOUT-WELDING MACHINE

l.The machine is used for making three-side sealing bag or stand-up bag with spout from the plastic laminated film.

2.Compared with the common bag making machine, which are with the high production efficiency, turnover less, low cost, stable quality etc futures.

Product Detail

Usage

1.The machine is used for making three-side sealing bag or stand-up bag with spout from the plastic laminated film.

2.The machine starts from unwinding, in turn are magnetic powder brake, dancer arm roller tension adjusting, cutting, rectifying, double layers coinciding, bottom film feed and inserting, (shape puncher), servo drive, spout feed, spout hot sealing, spout cold sealing, cross hot sealing, cross cold sealing, (shape puncher),color code tracking, servo traction, cutting off (shape puncher), products unloading table.

Advantage

1.Welding nozzle, bag making machine

2.Double independent bag, storage (refueling without stop)

3.Double cutting knife, double roll

Main Technical Specification

The machine starts from unwinding, in turn are magnetic powder brake, dancer arm roller tension adjusting, cutting, rectifying, double layers coinciding, bottom film inserting, shape puncher, servo drive, spout feed, spout hot sealing, spout cold sealing, cross hot sealing, cross cold sealing, color code tracking, servo traction, cutting off (shape puncher), products unloading table.

1	Film material	Plastic laminated film
2	Capacity:	Single bag feed：Max35-40pcs/minDouble bag feed：Max 70-80pcs/min
3	Material thickness	0.06～0.15mm

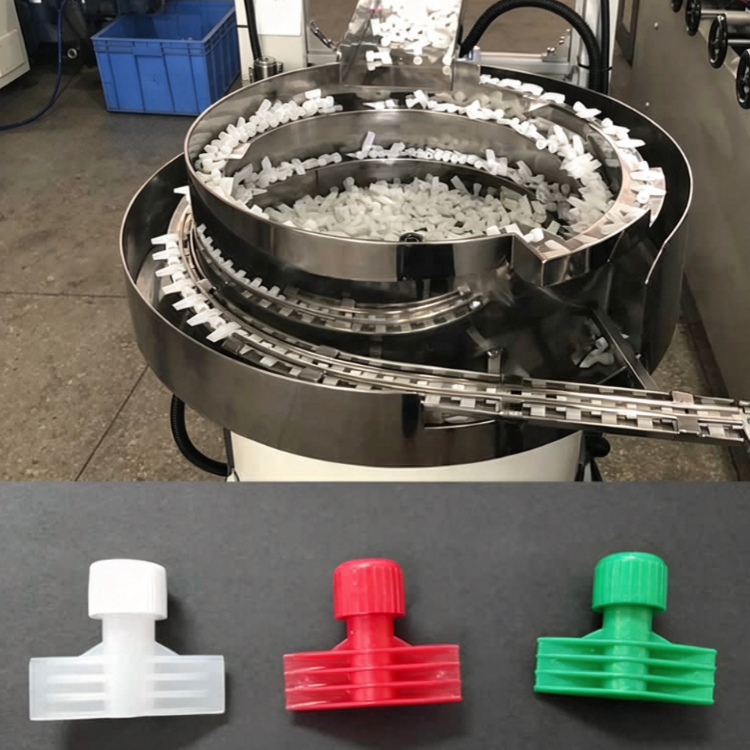

4	Spout type	Different kinds of small plastic spout.
5	(Speed for spout pouch, specific speed according to pouch size and material)
6	Pouch size:(L×W)	Single bag feed：Max300×200mmDouble bag feed：Max150×100mm
7	Total power	About 25KW
8	Power voltage	AC380V,50HZ, 3P
9	Air pressure:	0.5-0.7Mpa
10	Cooling water:	10L/min
11	Machine working table height:	950mm
11	Machine working table height:	handle operation height 850mm
12	Machine dimension(MAX):	L×W×H: 8200mm×3500mm×2000mm
13	Machine weight:	about 5000KG
14	Machine color:	Gray (wallboard)/ stainless steel (guard board)
