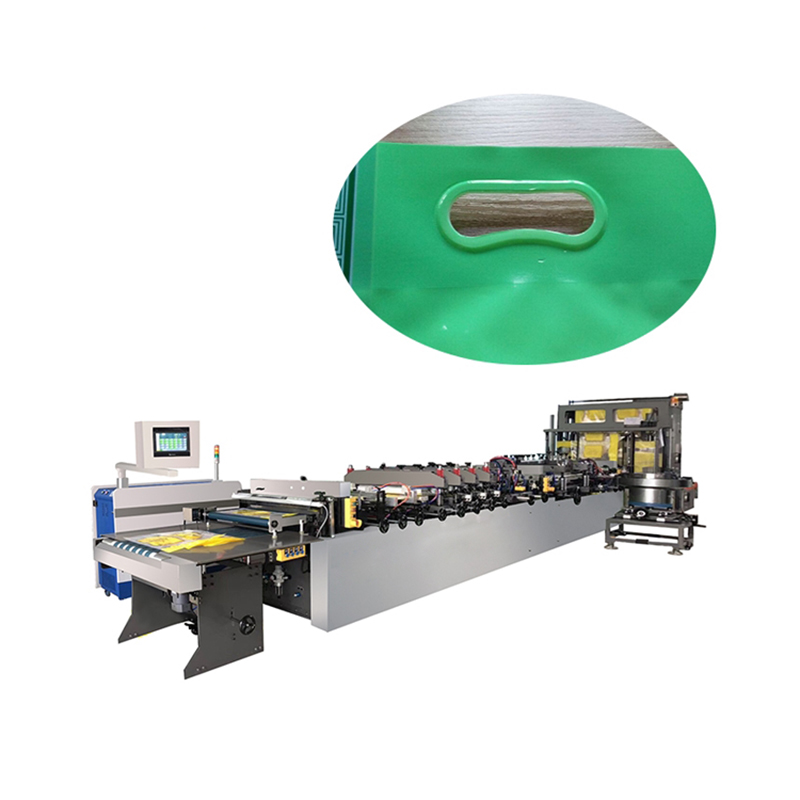

NCA600SHW THREE-SIDE SEAL BAG MAKING AND HANDLE WELDING MACH

l.This machine is used to make packaging bags of various laminated films.

2.It can be widely suitable for making three-side sealing bag and three-side bag with welded handle.

g ink and other liquid daily chemicals etc.

Product Detail

Usage

l.This machine is used to make packaging bags of various laminated films with plastic spouts, the bag making and the spout sealing are done at the same time.

2.The products are widely used for high-capacity packaging of food, such as red wine, edible oil, fruit juice, chocolate plasma, drinking water, soy sauce etc; also used for hand washing liquid, washing liquid, disinfectant liquid, printing ink and other liquid daily chemicals etc.

Advantage

1.This machine is used to make packaging bags of various laminated films.

2.Through the optional auxiliary device, it can be widely suitable for making three-side sealing bag and three-side bag with welded handle.

Main Technical Specification

1.	PLC control module	Panasonic Japan
2.	Servo motor	Panasonic Japan
3.	Film unwinding constant tension, AUTO rectifying
4.	Speed reducer	Planetary China
5.	Color mark sensor	Italy
6.	Cylinder	AirTAC China
7.	10.4’ touch screen	WEINVIEW, Taiwan
8.	Machine control system	Hangzhou Sotry, China

1.	Film material	BOPP、CPP、PET、PE、NYLON etc. Various laminated films.
1.	Capacity:	Three-side seal with handle bag: 20-25parts/min
2.	Max film reel unwinding speed:	36m/min (Machine designing speed)
3.	Bag making error	length and width : ±1mm.
4.	(Actual capacity is according to the bag length, film material and hot sealing efficiency.)
5..	Film reel size:	Main film:Max φ800×1220mm(width), inner hole：3′
5..	Film reel size:	Gusset film: Max φ600×150mm,inner, hole：3′ air shaft
6.	Pouch size:	Bag length: Max580mm Bag width: Max420mm,(over 420 mm need the multiple conveying).
7.	Total power	About 52KW
8	Power voltage	AC Three phase 380V，50HZ
9	Air pressure:	0.5-0.7Mpa
10	Cooling water:	10L/min
11	Machine working table height:	950mm
11	Machine working table height:	handle operation height 850mm
12.	Machine dimension(MAX):	L×W×H: 11000mm×3000mm×2000mm
13.	Machine weight:	about 6000KG
14	Machine color:	Gray (wallboard)/ stainless steel (guard board)
