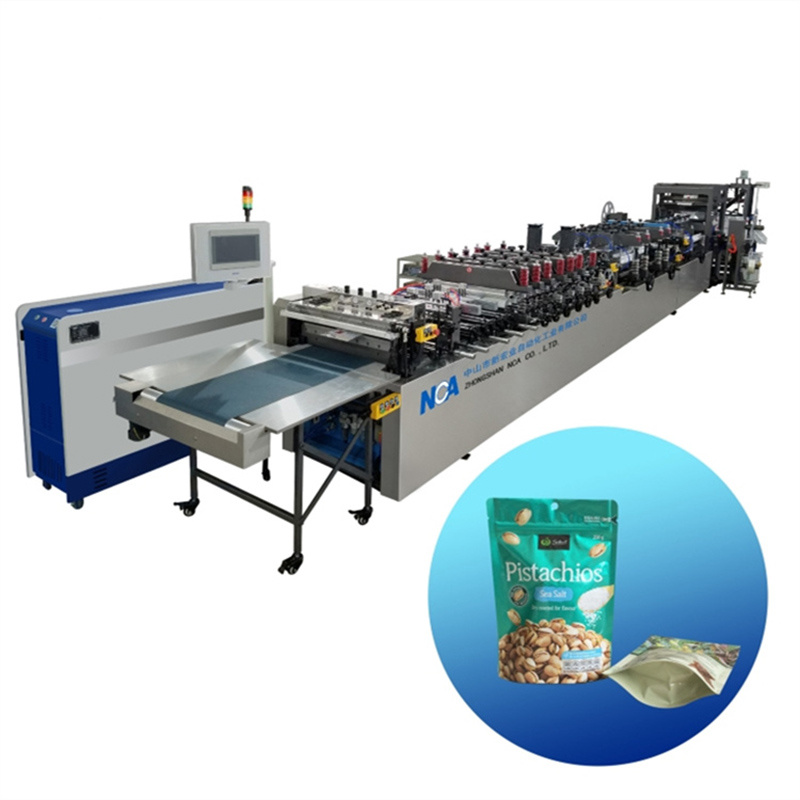

NCA600SZL THREE-SIDE SEAL,STAND-UP, ZIPPER BAG MAKING MACHIN

l.This machine is used for making three-side sealing and stand-up pouch from the plastic laminated film.

2.It can be widely suitable for making 3-side sealing bag (2 bags feeding), stand-up pouch (double bags feeding), zipper bag (double bags feeding), stand-up zipper bag (double bags feeding).

Product Detail

Usage

l.This machine is used for making three-side sealing and stand-up pouch from the plastic laminated film.

2.It can be widely suitable for making 3-side sealing bag (2 bags feeding), stand-up pouch (double bags feeding), zipper bag (double bags feeding), stand-up zipper bag (double bags feeding).

Advantage

1.Multi-functional bag making machine

2.Applicable bag type：four-sided sealing bag，Soft handbag

3.Speed: 150pcs / min

Main Technical Specification

Model	NCA600SZL
Roll size	(Max width ): 1220mm;(Max diameter ): φ800mm
Stand-up pouchauxiliary material	(Max width): 150mm(Max diameter): φ600mm
Bag-making specification	(Width ): 80-320mm (Length ): 80-600mm( Bottom gusset): 20-70 mm
Bag-making specification	If bag width over 320mm, need to use multiple conveying
Bag-making speed &Suitable bag type	(3-side seal bag): 80-150parts/min(zipper bag ): 80-100 parts /min(Stand-up pouch): 100 parts /min
Unwinding way	Horizontal unwinding spindle, pneumatic locking.
Power	AC 380V, 50HZ, 78KW
Compressed air	0.5-0.7Mpa
Cooling water	8-10L/min
Dimension	(L×W×H) 12700×2500×2000mm
Weight	9000KG

The machine starts from unwinding, in turn are magnetic powder brake, dancer arm roller tension adjusting, cutting, rectifying, double layers coinciding, zipper sealing(hot/cold), servo drag, vertical sealing(hot/cold), servo drag, cross hot sealing, cross hot sealing, cross cold sealing, bag spare side cutting, color code track, servo traction, cutting off,

products unloading table.
